SERIES GROUP CHART PRODUCT LIST

시리즈명을 누르면 데이터시트(PDF)를 볼 수 있습니다.

PRODUCT LIST CONDUCTIVE POLYMER ALUMINUM HYBRID CAPACITORS

PRODUCT LIST CONDUCTIVE POLYMER ALUMINUM HYBRID CAPACITORS
SeriesApplicationsLoad life Time (Hrs)MiniatureStandard typeLow impedanceLong lifeSolvent-proofTerminal typeRated voltage range (VDC)Capacitance range (㎌)
Conductive Polymer Aluminum Hybrid CapacitorsSurface mountFSVVertical type, 105℃, High Voltage105℃ 10,000Hrs●●●●SMD16~806.8~560
FPVVertical type, 125℃, High Voltage125℃ 4,000Hrs●●●●SMD16~806.8~470
FPWVertical type, 125℃, Downsized125℃ 4,000Hrs●●●●SMD16~6356~470
FPXVertical type, 125℃, High Ripple125℃ 4,000Hrs●●●●SMD16~35270~1,000
FRVVertical type, 135℃, High Temperature135℃ 4,000Hrs●●●SMD16~63270~1,000
FRWVertical type, 135℃, Low ESR135℃ 4,000Hrs●●●SMD25~6333~330
FQVVertical type, 150℃, High Temperature150℃ 1,000HrsSMD25~6333~270

PRODUCT LIST SURFACE MOUNT ELECTROLYTIC CAPACITORS

PRODUCT LIST SURFACE MOUNT ELECTROLYTIC CAPACITORS
SeriesApplicationsLoad life Time (Hrs)MiniatureStandard typeLow impedanceLong lifeSolvent-proofTerminal typeRated voltage range (VDC)Capacitance range (㎌)
Surface mountGeneral PurposeBXJ5.6~14.0mm max. height, Low Imp., Long Life105℃ 2,000~5,000Hrs●●●SMD6.3~1004.7~2,200
BXF5.5~10.5mm max. height, Ultra Low ESR105℃ 2,000Hrs●●SMD6.3~50100~1,500
BXQ6.1~14.0mm max. height, downsized, Ultra Low ESR105℃ 2,000Hrs●●SMD6.3~5047~2,200
BDA5.5~6.0mm max. height, Long life105℃ 2,000Hrs●●SMD4~501~100
BLA5.5~14.0mm max. height, Long life105℃ 5,000Hrs●●SMD4~4001~1,000
BLH10.5~14.0mm max. height, Long life105℃ 10,000Hrs●●SMD10~5033~1,000
CLZ5.5~22.0mm max. height, Wide temp., Low ESR125℃ 1,000~5,000Hrs●●●SMD10~4001~4,700
CLX10.5~14.0mm max. height, Wide temp. Ultra low ESR125℃ 2,000~4,000Hrs●●●SMD10~5033~1,000
CLS6.0~10.5mm max. height, downsized, Ultra Low ESR125℃ 2,000Hrs●●SMD10~5047~470
VDA10.5~14.0mm max. height, Wide Temp150℃ 1,000Hrs●●SMD10~5047~1,000
Special ApplicationBXM6.1~8.0mm max. height, Downsized105℃ 2,000Hrs●●SMD10~50100~470
BXW8~10.5mm max. height, Ultra low ESR, Long Life105℃ 3,000~5,000Hrs●●SMD10~5068~2,200
BXP10.5mm max. height, Ultra Low ESR, Long Life105℃ 10,000Hrs●●●SMD25~35560~740
CLI8.0mm max. height, Downsized, Ultra Low ESR, Long life125℃ 2,000Hrs●●SMD10~50100~470
CLU8~10.5mm max.height, downsized, Ultra Low ESR, Long Life125℃ 3,000~5,000Hrs●●SMD10~5047~680

PRODUCT LIST MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

PRODUCT LIST MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
SeriesApplicationsLoad life Time (Hrs)MiniatureStandard typeLow impedanceLong lifeSolvent-proofTerminal typeRated voltage range (VDC)Capacitance range (㎌)

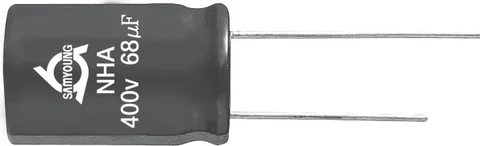

MiniatureGeneral PurposeNHAHigh Capacitance, Downsized105℃ 1,000~2,000Hrs●Radial6.3-5003.3~15,000

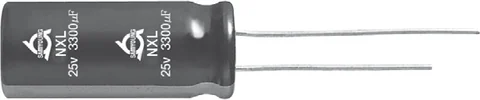

ESR. Low Imp.NXL(LXV)Low Imp., Long Life105℃ 2,000~5,000Hrs●●●Radial6.3~1003.3~15,000

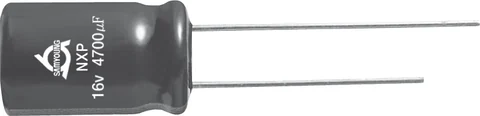

NXP(LXZ)Low Imp., Long Life105℃ 2,000~5,000Hrs●●●Radial6.3~5068~18,000
NXRLow Imp., Long Life105℃ 4,000~7,000Hrs●●●Radial6.3~35330~12,000

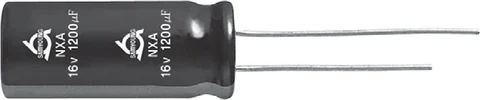

NXALow Imp., Long Life105℃ 6,000~10,000Hrs●●Radial6.3~10039~18,000
NXBLow Imp., Long Life105℃ 2,000~5,000Hrs●●Radial6.3~12022~8,200

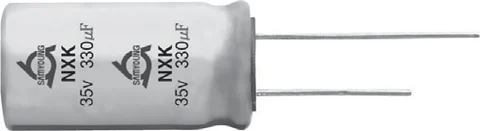

NXKLow Imp., Long Life, High Ripple105℃ 4,000~5,000Hrs●●Radial10~50120~2,700

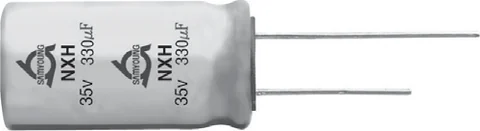

NXHLow Imp., Long Life105℃ 6,000~10,000Hrs●●Radial6.3~10047~10,000
NXQLow Imp., Long Life, High Ripple105℃ 9,000~10,000Hrs●●Radial6.3~12033~8,200

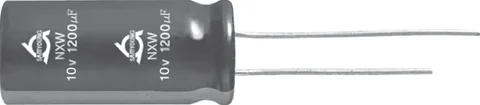

NXWLow Imp., Long Life, High Ripple105℃ 8,000~10,000Hrs●●Radial6.3~50120-8,200
NXEUltra Low ESR, Long Life105℃ 3,000~4,000Hrs●●Radial6.3~35270~3,300

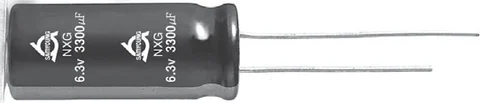

NXGUltra Low ESR, Long Life, High Ripple105℃ 3,000~4,000Hrs●●Radial6.3~35270~3,300
High ReliabilityNZEHigh Ripple105℃ 2,000Hrs●Radial160~5004.7~1,000
NFKLong Life, High Ripple105℃ 5,000Hrs●Radial160~5004.7~1,000
NFSLong Life, High Ripple105℃ 5,000Hrs●Radial200~5006.8~150
NBALong Life, High Ripple, Low Temp.105℃ 3,000~5,000Hrs●Radial160~5001.5~1,000
NBRLong Life, High Ripple, Low Temp.105℃ 3,000~5,000Hrs●Radial160~5001.5~470

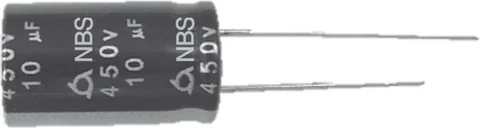

NBSLong Life, High Ripple, Low Temp.105℃ 5,000Hrs●Radial160~5006.8~470
NFALong Life, High Ripple105℃ 7,000-10,000Hrs●Radial160~5002.2~1,000
NFLLong Life, High Ripple105℃ 8,000-12,000Hrs●Radial160~50047~180
NFRLong Life, High Ripple105℃ 8,000-12,000Hrs●Radial160~5003.3~470

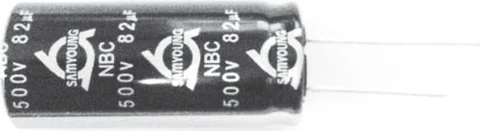

NBCLong Life, High Ripple, Low Temp.105℃ 5,000-12,000Hrs●Radial160~5001.5~1,000

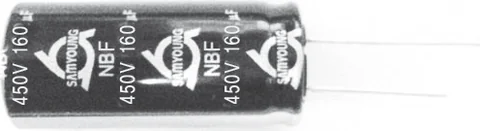

NBFLong Life, High Ripple, Low Temp.105℃ 12,000Hrs●Radial450~50033~180

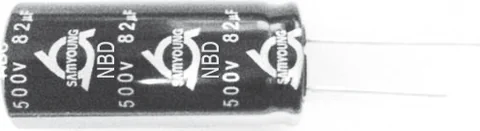

NBDLong Life, High Ripple, Low Temp.105℃ 10,000~12,000Hrs●Radial160~5006.8~470

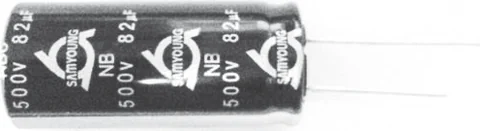

NBLLong Life, High Ripple, Low Temp.105℃ 15,000~20,000Hrs●Radial160~5003.3~470
NBHLong Life, High Ripple, Low Temp.105℃ 20,000Hrs●●Radial160~50033~470

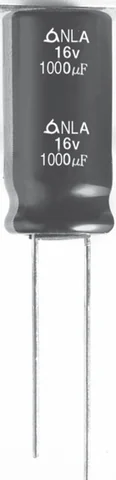

NLALong Life105℃ 6,000-10,000Hrs●●●Radial6.3~50100~18,000

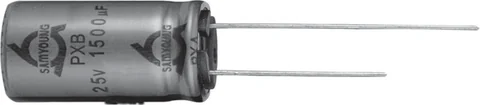

PXBWide Temp., Low Imp., Long Life125℃ 3,000-5,000Hrs●●●Radial10~4504.7~4,700

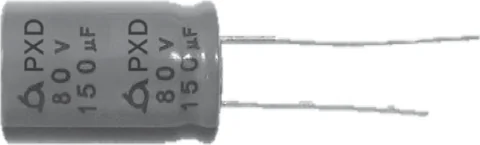

PXDWide Temp.,Ultra Low Imp., Long Life125℃ 4,000-5,000Hrs●●●Radial10~80100~4,700

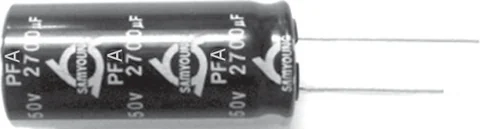

PFAWide Temp., Low ESR135℃ 2,000Hrs●●●Radial10~100180~14,000

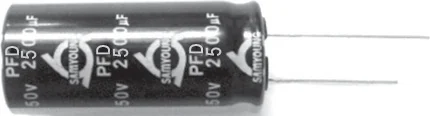

PFDWide Temp.125℃ 5,000Hrs / 135℃ 2,000Hrs●Radial50~80470~3,600
PFBWide temp..Long life.High Voltage130℃ 8,000~10,000Hrs●●Radial400~50018~150

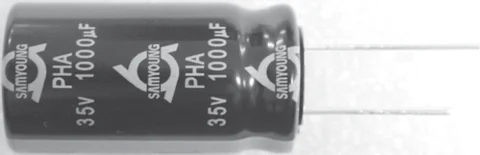

PHAWide Temp.150℃ 2,000Hrs●●Radial10~50100~3.300

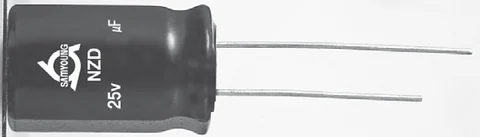

Special ApplicationNZDAir Bag105℃ 5,000Hrs●●Radial25~351,100~5,000

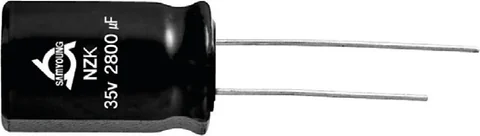

NZKAir Bag105℃ 5,000HrsRadial25~352,800~14.000
NZHHigh Ripple, 550V Surge105℃ 2,000HrsRadial45018~150
NZRHigh Ripple, 550V Surge105℃ 2,000HrsRadial45023~150
NLFFlame Retardant electrolyte type105℃ 5,000HrsRadial400~500

PRODUCT LIST LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS

PRODUCT LIST LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS
SeriesApplicationsLoad life Time (Hrs)MiniatureStandard typeLow impedanceLong lifeSolvent-proofTerminal typeRated voltage range (VDC)Capacitance range (㎌)
PCBTerminal TypeGeneral PurposeTDCMore Downsized105℃ 2,000Hrs●Pin160~50068~1,200
High ReliabilityTLSDownsized, Long Life, Wide Temp., High Ripp105℃ 3,000Hrs●Pin160~55056~3,300

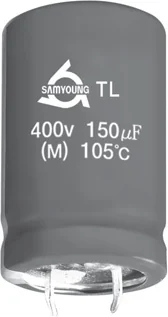

TLGDownsized. Long Life, High Ripple, Low Temp105℃ 3,000Hrs●Pin160~50047~2,700

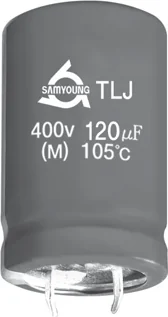

TLJDownsized. Long Life, High Ripple, Low Temp105℃ 3,000Hrs●Pin400~50056~680

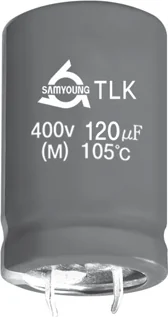

TLKDownsized. Long Life, High Ripple, Low Temp105℃ 3,000Hrs●Pin400-50056~680
TLRDownsized. Long Life, High Ripple, Low Temp105℃ 3,000Hrs●Pin400-50068~680
TLHDownsized. Long Life. Wide Temp.. High Rioo105℃ 5,000Hrs●Pin400~50068~680

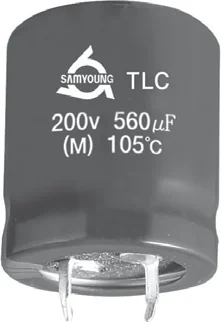

TLC(LXG)Miniature, Long Life105℃ 5,000Hrs●Pin10~50047~47,000
TLFMiniature, Long Life105℃ 5,000Hrs●Pin10~50047~47,000
TLBMiniature, Long Life105℃ 7,000Hrs●●Pin160~50047~2,200
TLLMiniature, Long Life105℃ 10,000Hrs●Pin200~500100~1,800
UDAWideTemp,125℃ 1,000Hrs●Pin16~250100~10,000
UDBWideTemp,Long Life, High Voltage125℃ 3,000Hrs●Pin450~500100~560
Special ApplicationRVANo Spark With DC Overvoltage85℃ 2,000HrsPin200~45047~2,200
TVANo Spark With DC Overvoltage105℃ 2,000HrsPin200~45056~1,800
TZFFlame Retardant electrolyte type105℃ 2,000Hrs●Pin400~450

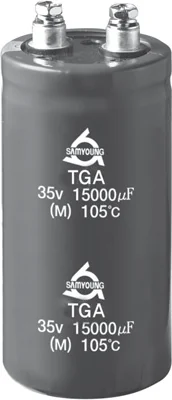

Screw-BoltTerminal TypeGeneral PurposeTGA(KMH)General, Wide Temp.105℃ 2,000HrsScrew10~450180~680,000

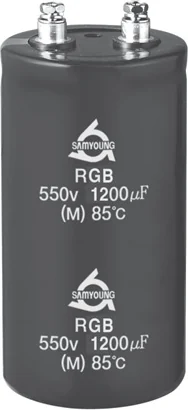

For InverterRGBHigh Ripple. High Voltage85℃ 2,000HrsScrew16~650100~680,000

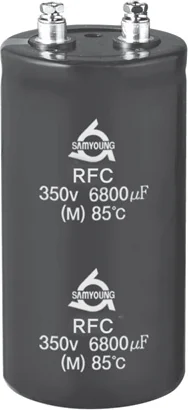

RFC(RWF)High Ripple. Long Life85℃ 5,000Hrs●Screw350~5501,500~22,000
RFAHigh Ripple. Long Life85℃ 8,000~20,000Hrs●Screw350~5501,000~22,000

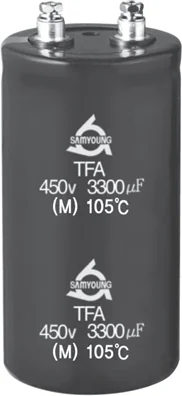

TFAHigh Ripple. Long Life105℃ 2,000~5,000Hrs●Screw350~5501,000~22,000

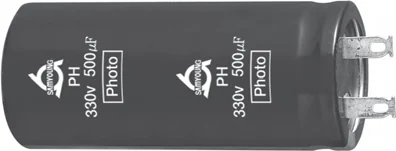

Special ApplicationPHFor Photo Flash5~355℃ 5,000TimesPin330165~2,000

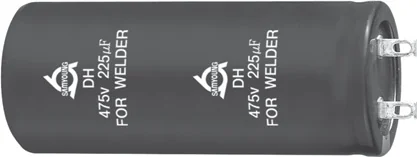

DHFor Welding Machine40℃ 1,000,000TimesScrew315~475100~330
